CREVALLE 26 HCO: Bigger is Better
You want a bigger boat?

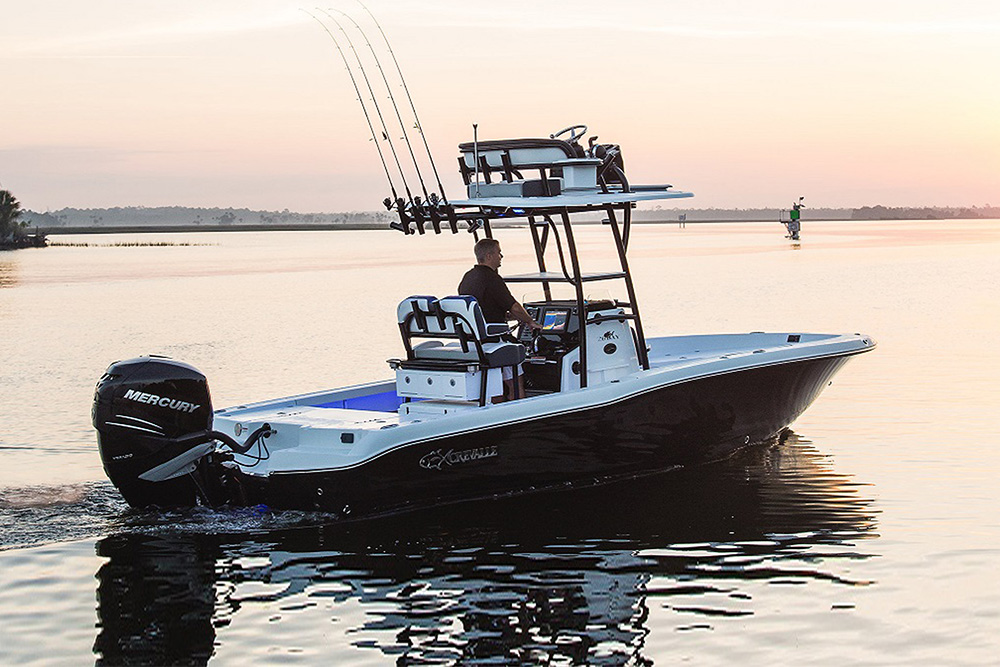

The Crevalle 26 HCO takes everything you love about the Crevalle 24 HCO and adds more room, features and power. Invite a few more friends, go a little further and enjoy the ride on a Crevalle 26-foot bay boat.
The Crevalle 26 HCO is ideal for fisherman who want the flexibility of a family boat. This 26 foot center console boat performs flawlessly whether it’s on the river, lake, inshore or offshore fishing trips.
See the Specifications for all the details, and visit the Build Your Crevalle page to customize the hybrid bay boat of your dreams.
specifications crevalle 26 HCO
LOA
25' 6"
BEAM
8' 6"
deadrise
16°
engine
300 - 400 HP
Approx. Fuel
90
Draft
12 - 14 inches
Approx. weight no motor
4,000 lbs.
persons capacity
9
Videos 26 HCO
coloroptions
white
stormcloud grey
Kingston grey
Seafoam Green
Stars & Stripes
light blue
volcanic black
Gel coat color samples above are to provide a likeness of the color option.
Computer monitors and printers may provide slight variations to the actual gel color.
features & options 26 HCO
Standard Hull & deck features
Standard on Our Hull & Deck
- All composite no wood construction
- Epoxy coated fuel tanks
- “CRIMP” – Crevalle Resin Infusion Manufacturing Process
- 10 year transferable hull warranty
- “Razor” LED spotlight/strip light on the hardtop
- Custom forward deck cushion package features easily removable/reversible molded backrest
- Tilt helm with a custom stainless steel steering wheel
- Black or white rub rail with stainless steel insert
- Composite transom
- Dedicated anchor locker
- Position control hinges on all hatches
- Fiberglass hatches finished on both sides
- NMMA certified using ABYC standards
- Self bailing cockpit
- Forged stainless steel thru hulls with duckbill valves & ball valves
- Portside swim platform with a telescoping stainless steel ladder
- Standard 6” engine jackplate combined with notched transom allows our boats to leap on plane in shallow water (jackplate all the way up) with no propeller cavitation.
- “Marelon” seacocks (composite material, no corrosion or electrolysis)
- Anti-Venturi thru-hull fittings (Allows pumps to operate at speed)
- Hidden deck drains with stainless covers and duckbill valves
- Welded one-piece stern eyes
- Deep cockpit for a safe dry ride

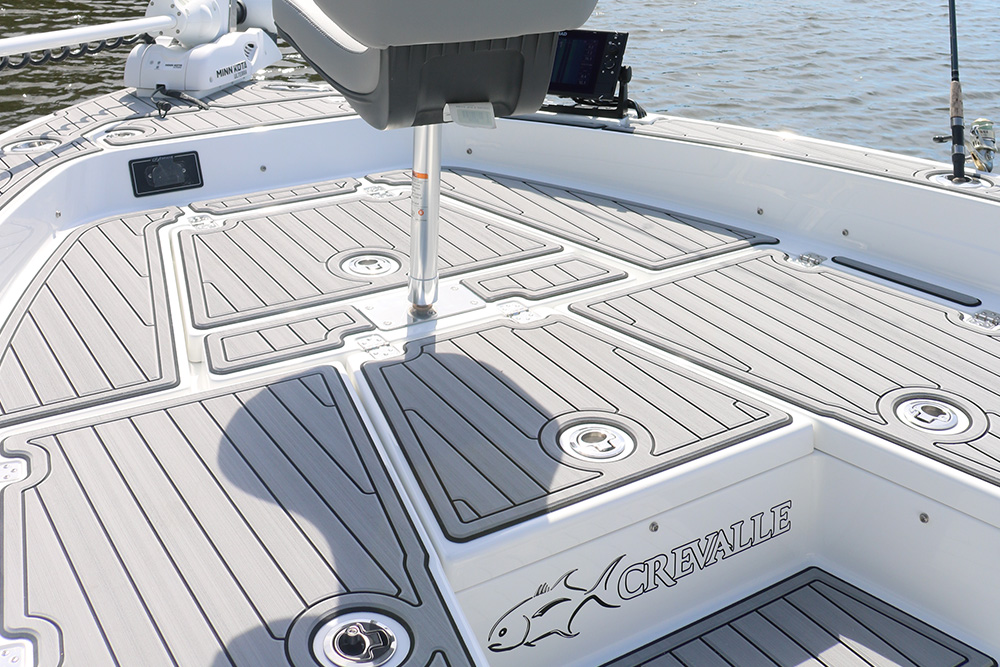

- Yacht Grip, non-skid deck
- Setback transom provides full aft deck

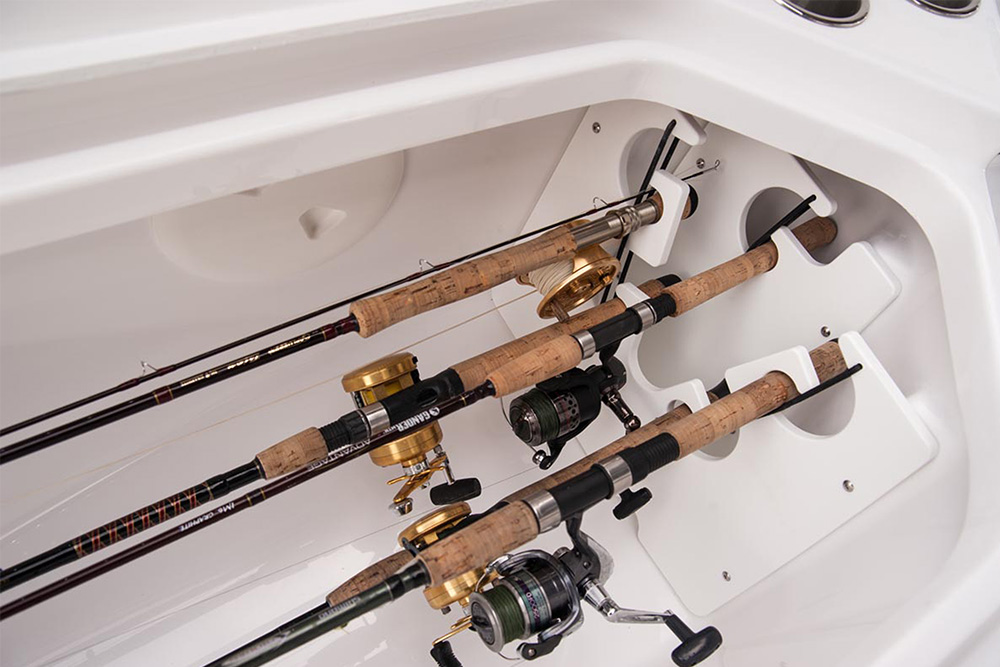

- Under gunwale rod storage for (3) 8′ rods each side

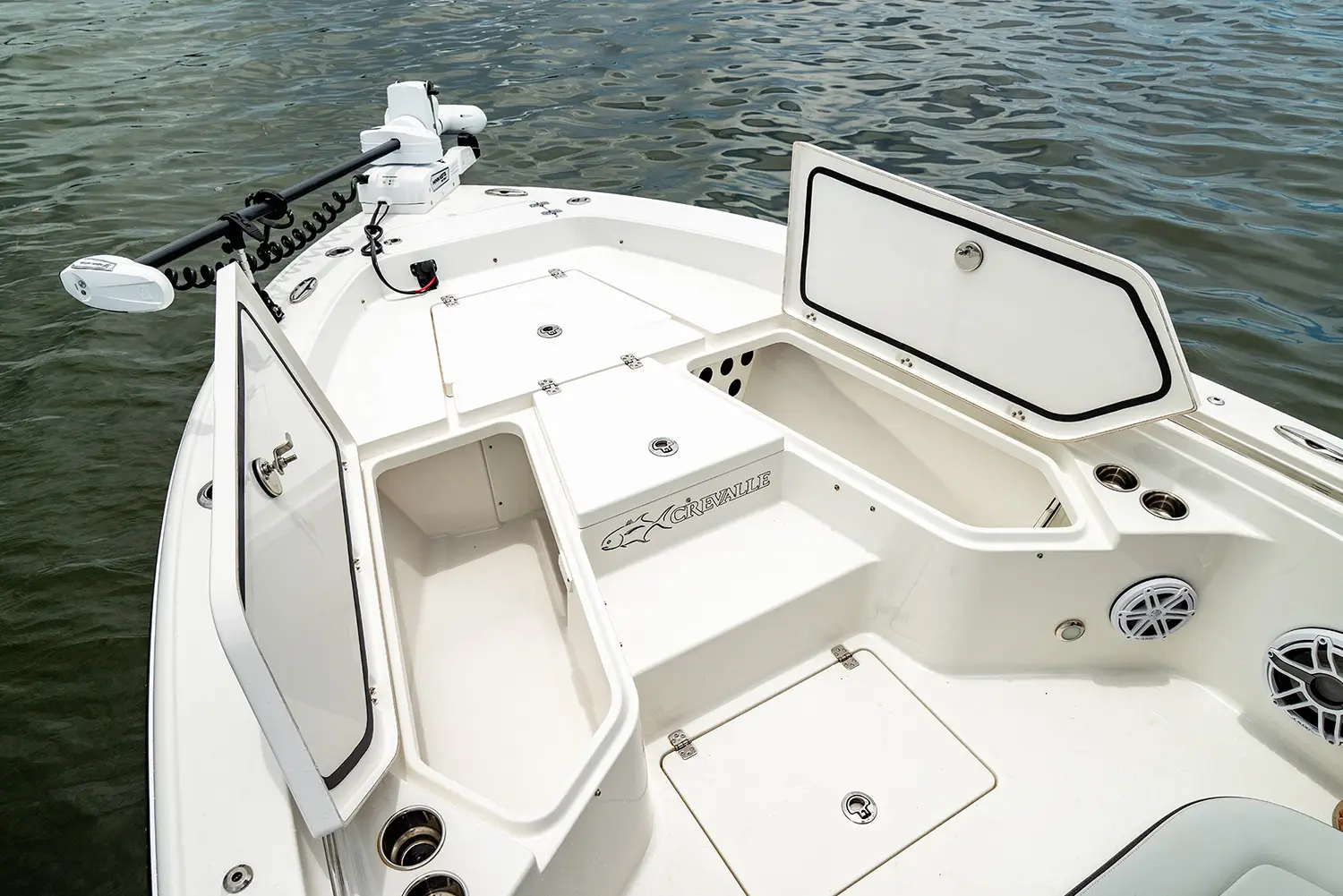

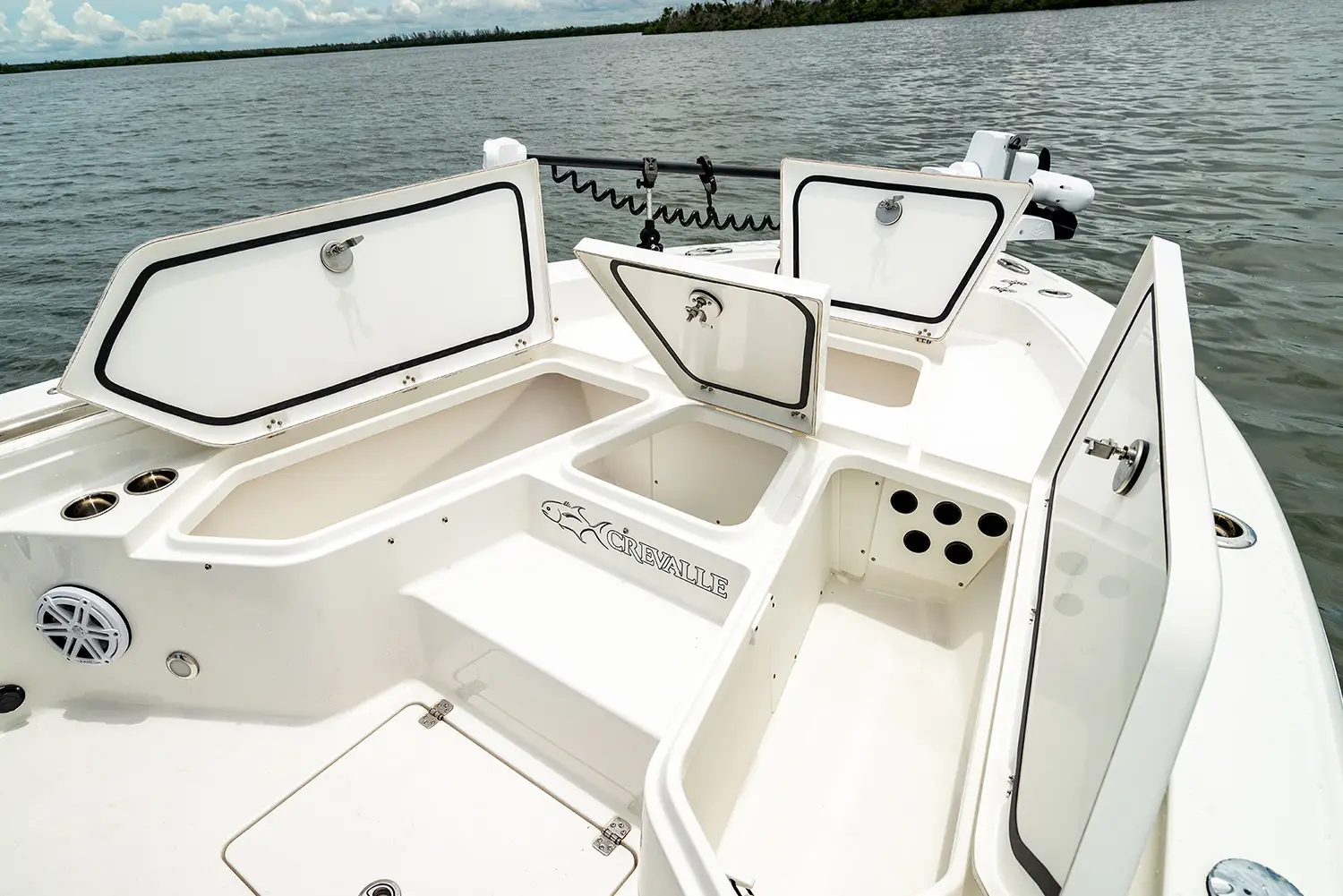

- Forward lockable rod storage with room for (10) 7′-6″ rods or 5 rods starboard side and an insulated portside fishbox
- 40″ wide flip-up aft seat on centerline for safety

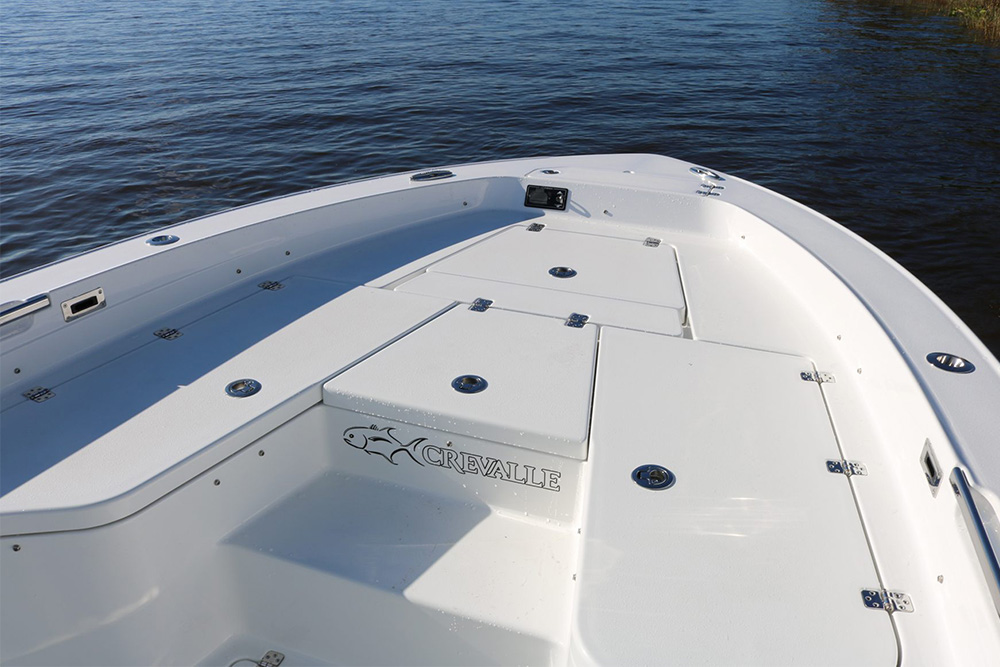

- Bow dry storage

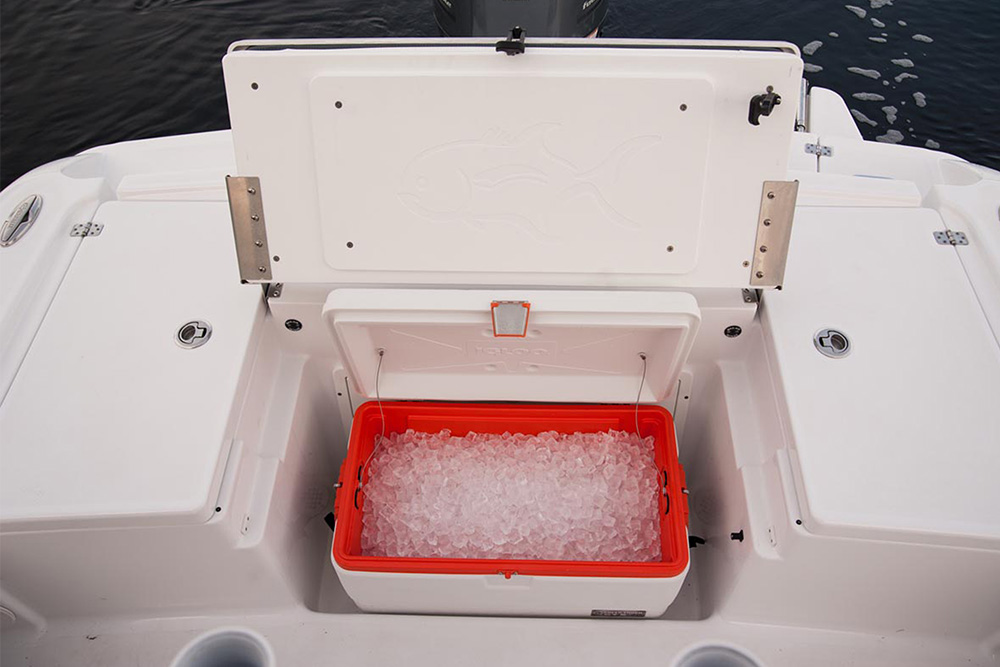

- Two removable coolers
- (6) Custom “Crevalle” pull-up cleats
- (8) Stainless steel cup holders

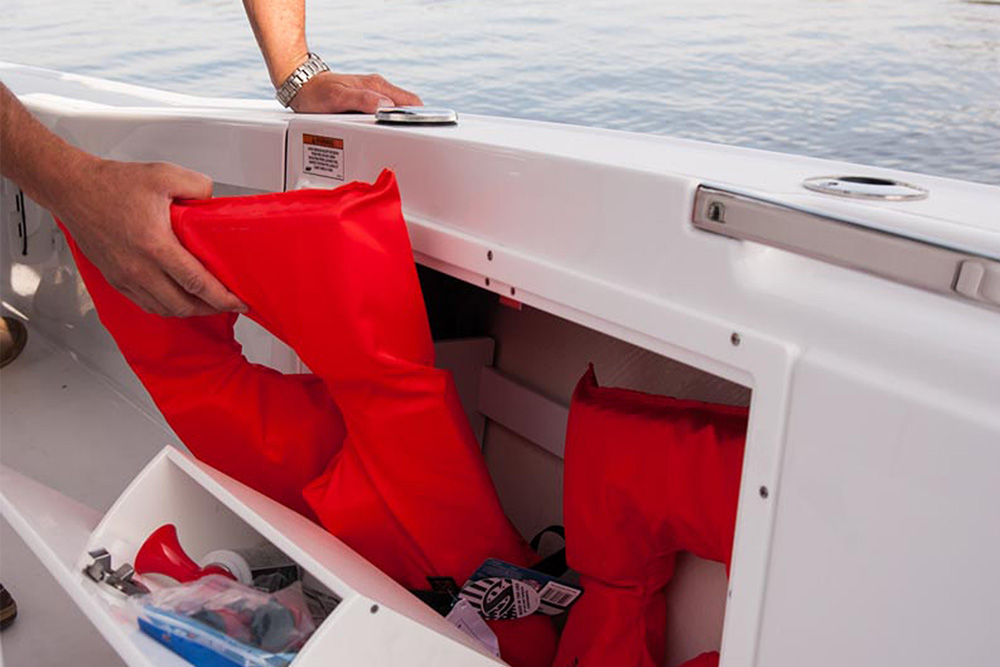

- Port and starboard in-gunwale safety gear storage
- Dual 12″ multifunction displays (Garmin or Simrad)
- In-floor storage for a 5 gallon bucket

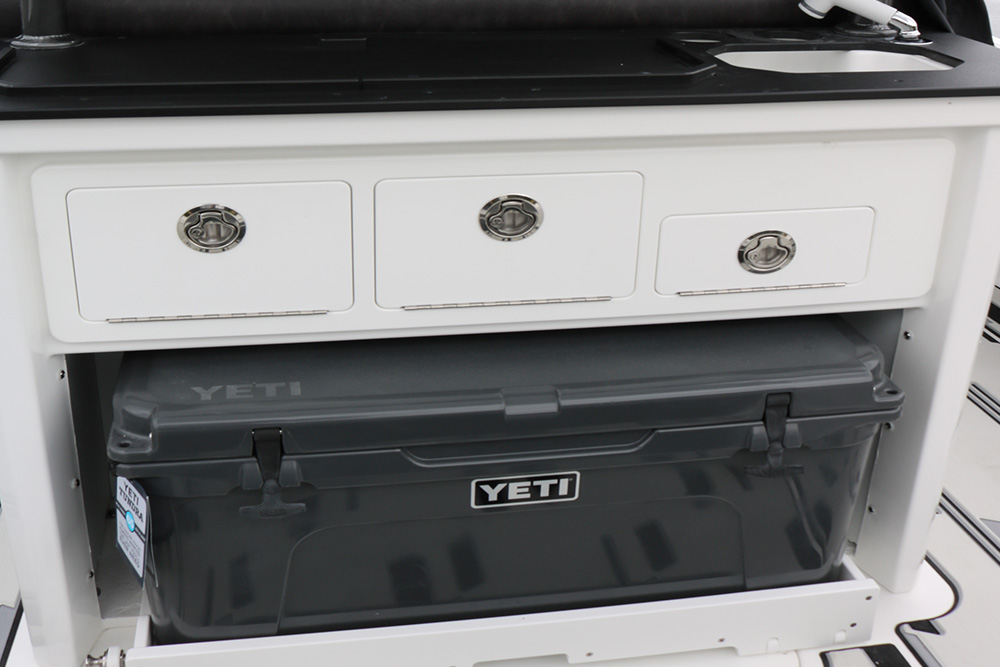

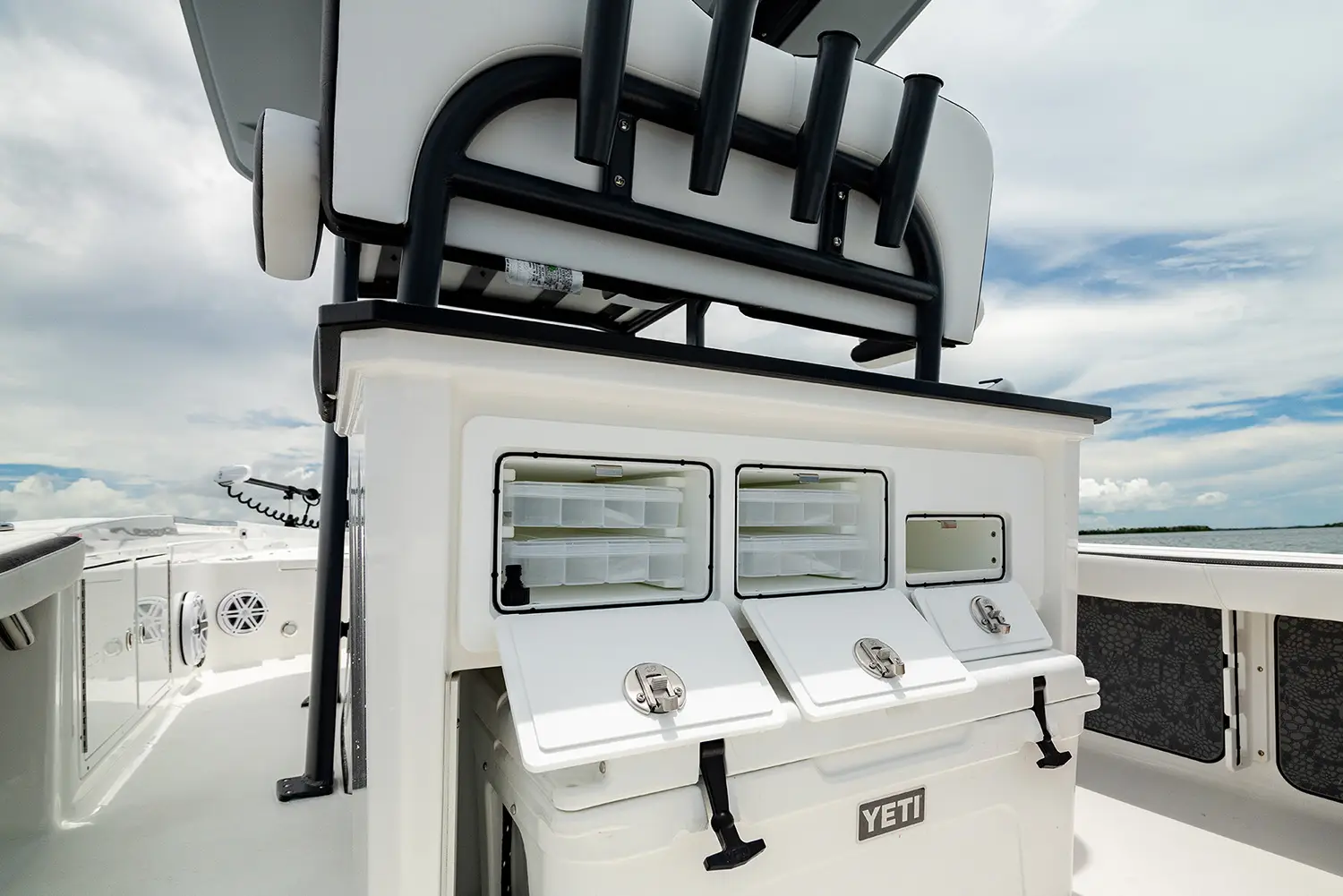

- Custom fiberglass leaning post with backrest, rigging tray, tackle storage (2 trays), sink, forward glove boxes (3), removable cooler, cup holders & rod holders (4)

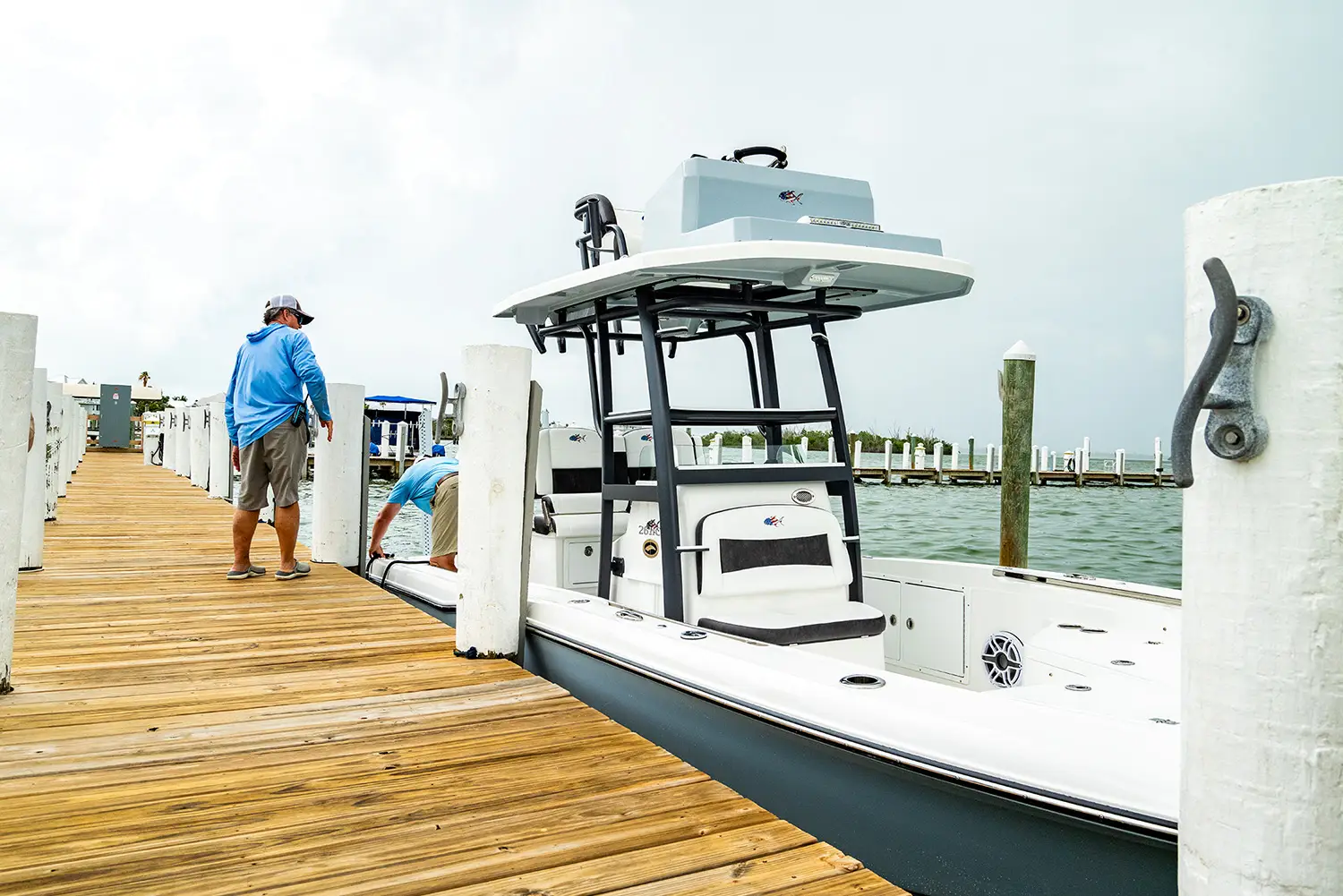

- MY 2024 fiberglass hardtop with a powder coated aluminum “D” tube frame, three sided embedded glass, LED (white/blue) overhead lights, mister system, speakers (2) & rod holders (4)
- Unobstructed aft fishing deck
- Pre wired 8 AWG wiring for trolling motor
- Trolling motor plug panel
- Custom flat bar grab rails molded into the deck
- Freshwater transom shower
- Fuel water separator
- “JL” stereo system
- Standard automatic/manual bilge pump & high water bilge pump
- Battery charger (2 bank) – engine and house batteries
- Battery charger (3 bank) – trolling motor batteries
- Underwater lighting
- Coaming pads
- Trim tabs – “Dometic” with LED indicator
- Illuminated mechanical/bilge area
3 Live Wells

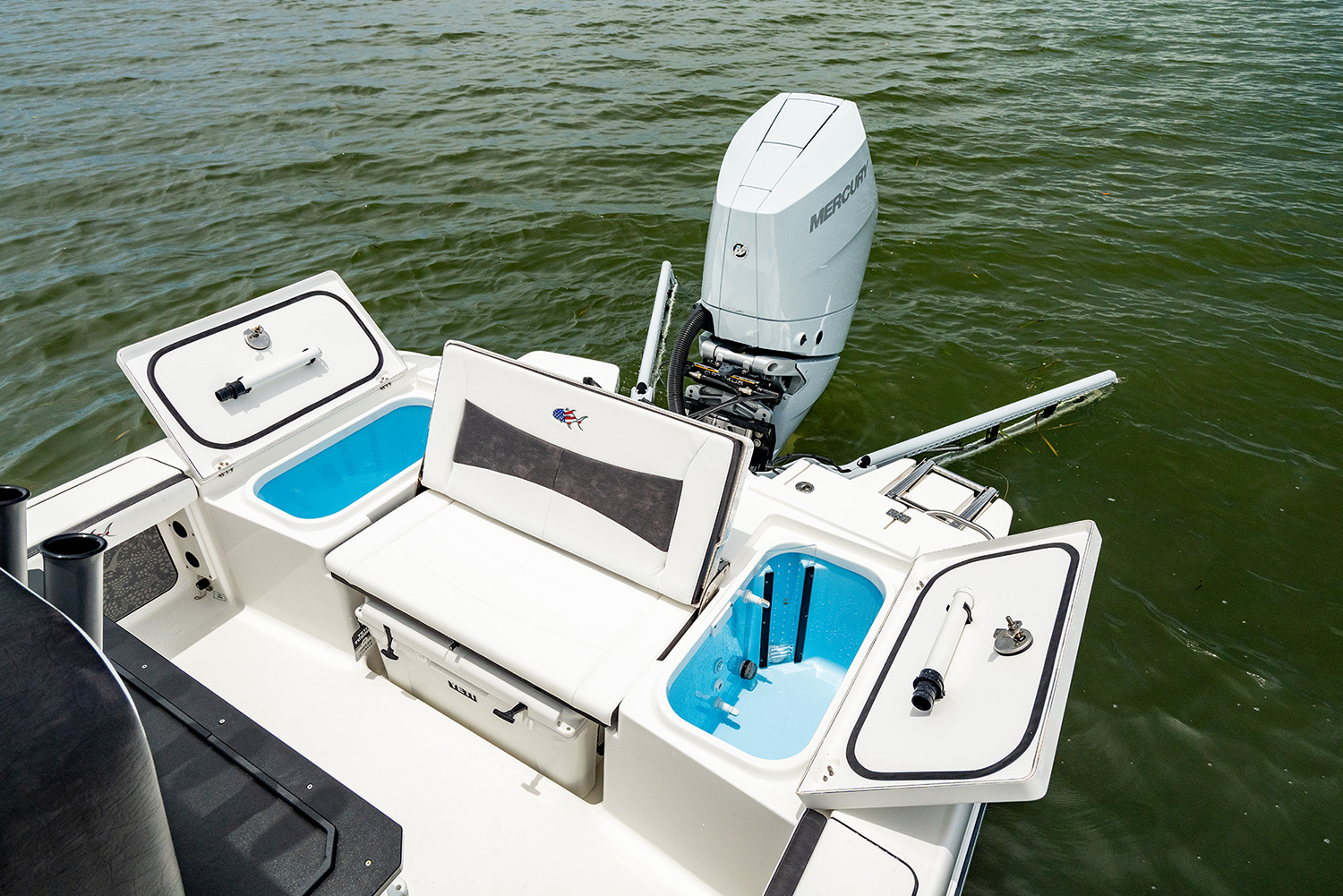

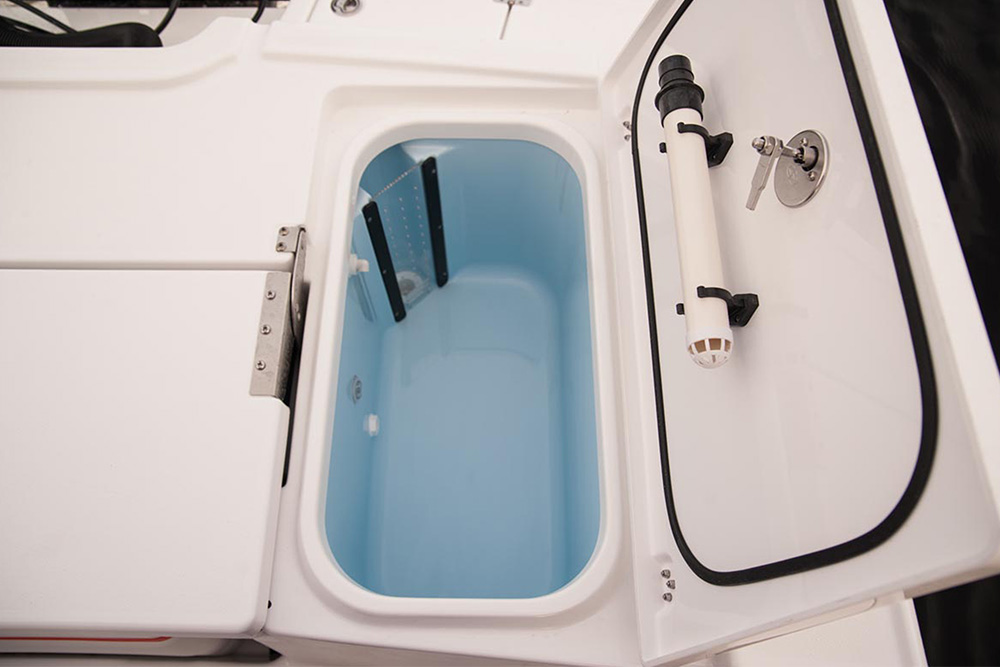

Aft Release Wells (2)
- Insulated 28 gallon aft bait/release wells
- Venturi aeration bubbler
- Dual livewell jets
- Protected overflow standpipe
- Commercial aquarium type aeration
- Light blue colored livewell gelcoat
- Dual port 800 gph, aeration pumps
- LED lighting
- Intake plumbing that prevents water levels from dropping at speed.
- Wide opening for cast net use
Forward Bait Well
- Insulated 12 gallon forward baitwell
- Adjustable aeration jet can be closed to convert bait well into fully insulated cooler
- Wide opening for cast net use
- Side mounted overflow fitting with removable filter dome means no standpipe to get in the way of netting bait
- Light blue colored livewell gelcoat
- Gasketed live well lids
All Wells Feature:
- Light blue colored livewell gelcoat
- 800 gph, dual port aeration pumps
- Insulation
- “Marelon” seacocks for safety and easy in water pump service
- LED lighting
Optional Engines & trolling motors
Optional Engines & Rigging
- Yamaha
- Mercury
- Suzuki
- Engine & house batteries with engine package
Optional Trolling Motors
- MinnKota RipTide ST Terrova 112/ iPilot 36 volt with removable bracket, 60″ & 72″
- Minnkota RipTide ST Ulterra 112/iPilot 36 volt auto deploy with removable bracket, 60″ & 72″
- Note: all factory rigged trolling motors come with a quick disconnect bracket and a battery tender trolling motor plug
Standard Helm & technical features

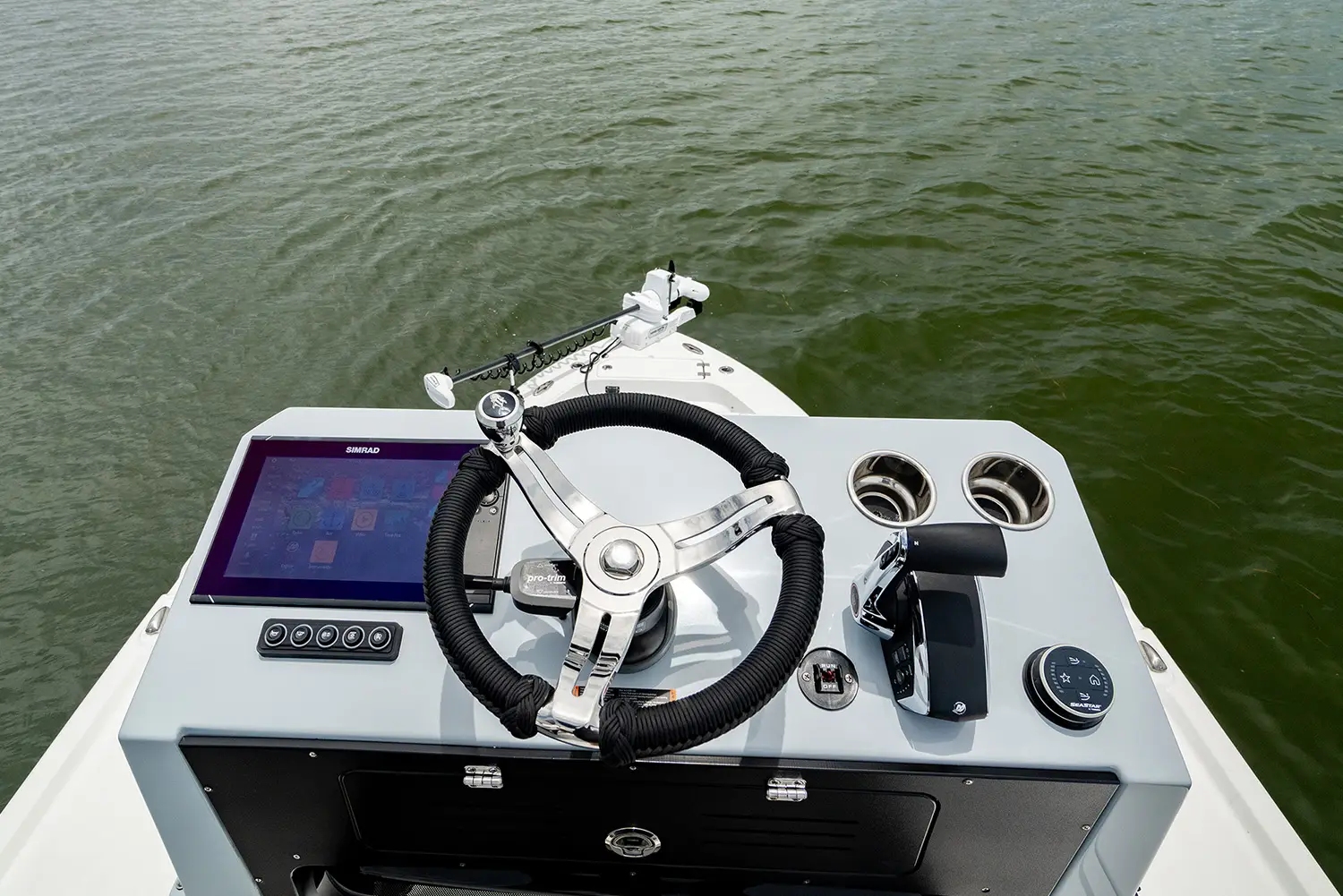

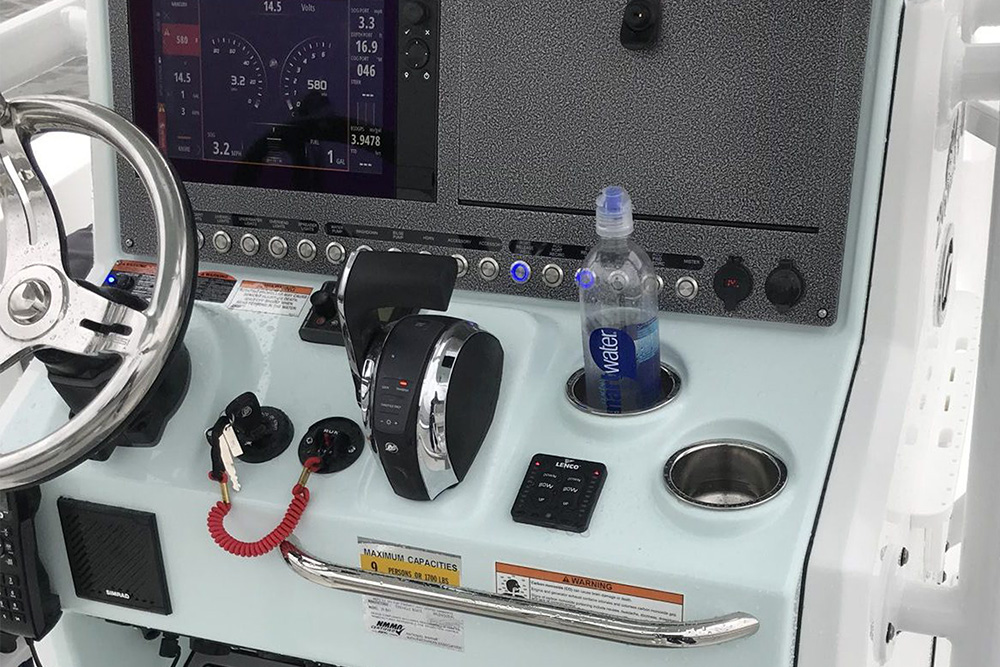

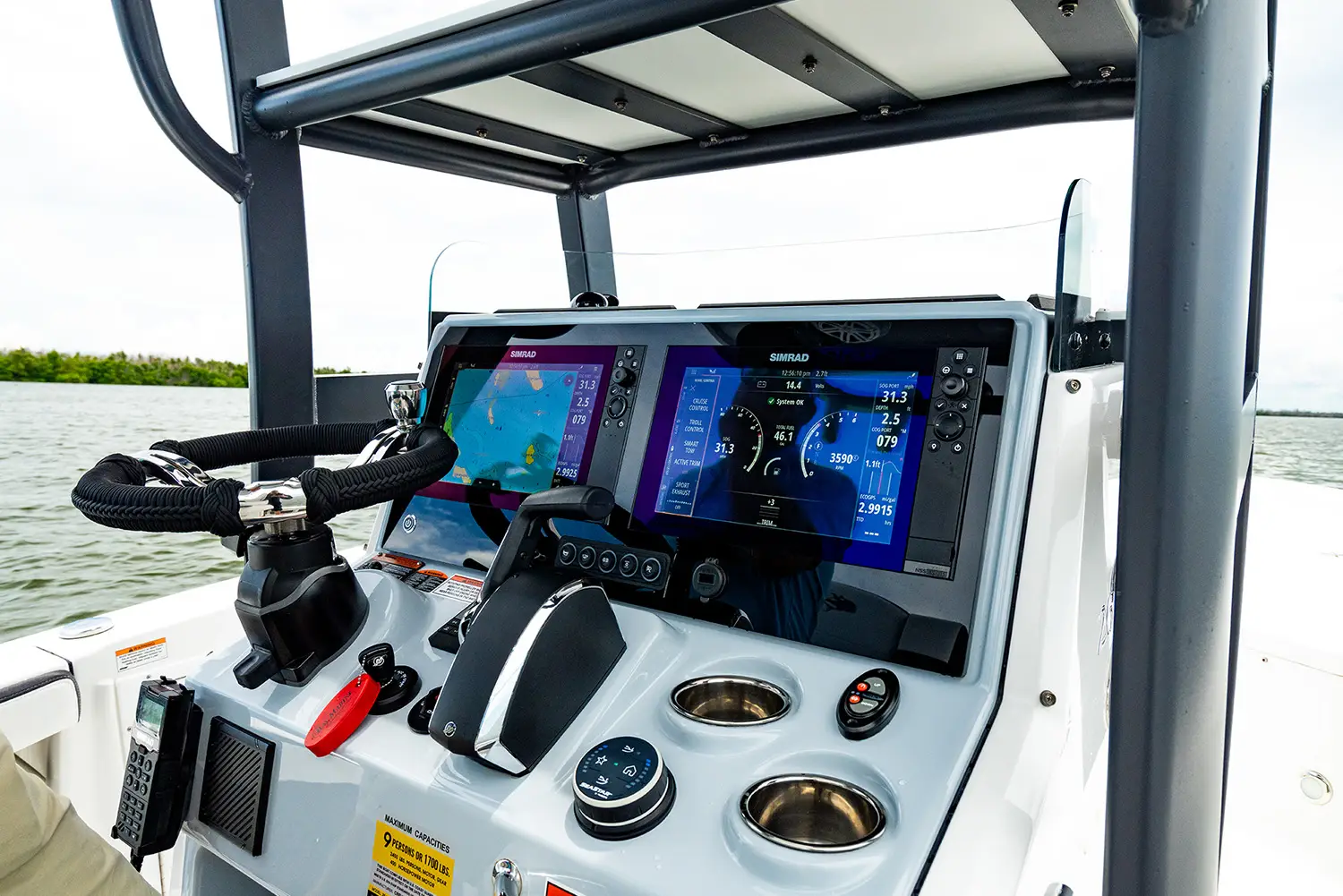

Standard on Our Helm
- Dual 12″ multifunction Garmin or Simrad displays
- Black box VHF radio
- Digital “C-Zone” switching
- Tilt helm with a deluxe stainless steering wheel with power knob
- Integrated, dual height, nonskid foot rests
- Welded 316 stainless steel console grab rail
- Wireless phone charger
- Compass
- Stainless steel horn
- Engine data on the multifunction displays (no gauges)
- Portside helm door
- Individual circuit breakers
- LED lighting inside storage
- Upgraded “JL” stereo/speakers’ system with digital amp
- Integrated engine data on electronics options
- Synthetic flooring for helm footrest and helm pad
- Battery charger (2 bank) – engine and house batteries
- Battery charger (3 bank) – trolling motor batteries
Standard on Our Upholstery
- High grade “Sileather” upholstery with contoured cushions and seating featuring multi-density foam.
Technical Standards
- Tinned copper wiring
- LED cockpit lighting throughout
- Deutsch water resistant plugs on harnesses
- Sealed buss bars
- Heat shrink electrical terminals
- Circuit breakers (not fuses)
- 8 AWG trolling motor harness
- “Aegis” automatic battery switch on the helm
- LED navigation lights in the stainless steel rubrail insert
- Deluxe battery hold down trays
Options
Optional Hull & Deck Equipment
- Swim platform starboard side (no telescoping ladder)
- Hull sides color
- Hull bottom color
- Gelcoat colored underside of the hardtop and helm face
- Mooring cover
- Casting chair kit (1) fore and (1) aft base, (1) pedestal, (1) seat
- Porta-potti
- Full second station – Power sliding “Webasto” pass thru with full second station controls, trim tab control, jackplate switch, space for a 7″ flush mount display, upper seat, flip up bolster, rod holders, tackle storage and cup holders
Optional Mechanical/Electrical
- Power Pole – single or dual, 8′ blade, black or white
- Power Pole – single or dual, 10’ blade, black or white
- Garmin or Simrad 24″ radome radar
*Standards and options are subject to change at any time at the discretion of the manufacturer.
